Well-Shaped Slotting
HR-1000

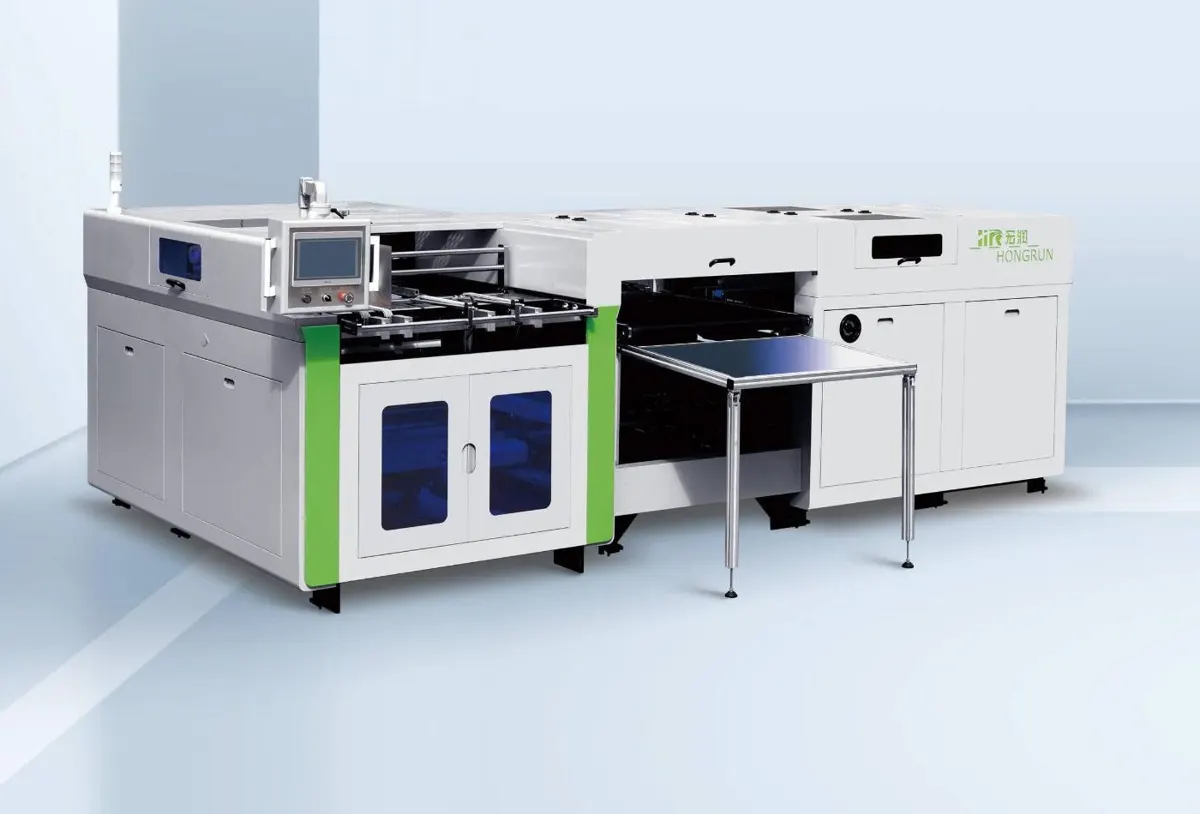

Well-Shaped Slotting Machine
Our flagship line for rigid lid-and-base box blanks.
The HR-1000 pairs a main machine with an auxiliary machine to cut both directions of the groove grid in one pass. Our original one-way deviation correction keeps the board square before it reaches the knives, and four-corner waste cleaning ejects the corner cut-outs on a side conveyor so operators never reach into the line.
- Max feed
- 650 × 920 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 7.5 kW
Highlights
- Original one-way deviation correction
- Four-corner waste cleaning with side discharge
- 3 grooving knives per cutter row
- Up to ~150 pieces/min on 200×300 mm blanks
Made for
- V/U grooving on crust paperboard
- L-grooving for edge trimming of density board
- Lid-and-base rigid gift boxes
Equipment data
| Minimum feeding size | 130 × 130 mm |
|---|---|
| Maximum feeding size | 650 × 920 mm |
| Grooving angle | 80°–140°, adjustable |
| Main machine correction length | 895 mm |
| Auxiliary assisted correction length | 1130 mm |
| Auxiliary correction length | 1000 mm |
| Maximum speed | 50–100 m/min · approx. 150 pcs/min (200×300 mm) |
| Normal speed | 50–80 m/min · approx. 110 pcs/min (200×300 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 7.5 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 1000 mm, 8 belts |
| Auxiliary machine drum | Φ600 × 800 mm, 6 belts |
| Four-corner waste cleaning | Conveyor belt, side discharge |
| Crossbeams | 2 main, 2 auxiliary |
| Cutter rows | 2 groups main, 2 groups auxiliary; 3 knives per row |
| Paper feeding | Belt friction, downward-drawing conveying |
Shipping
| Machine dimensions | Main 2450×1500×1500 mm · Aux 2800×1470×1400 mm |
|---|---|
| Packed dimensions | Main 2490×1590×1600 mm · Aux 2890×1490×1670 mm |
| Net / packed weight | 3500 kg / 3670 kg |
