Well-Shaped Slotting
HR-900AFS

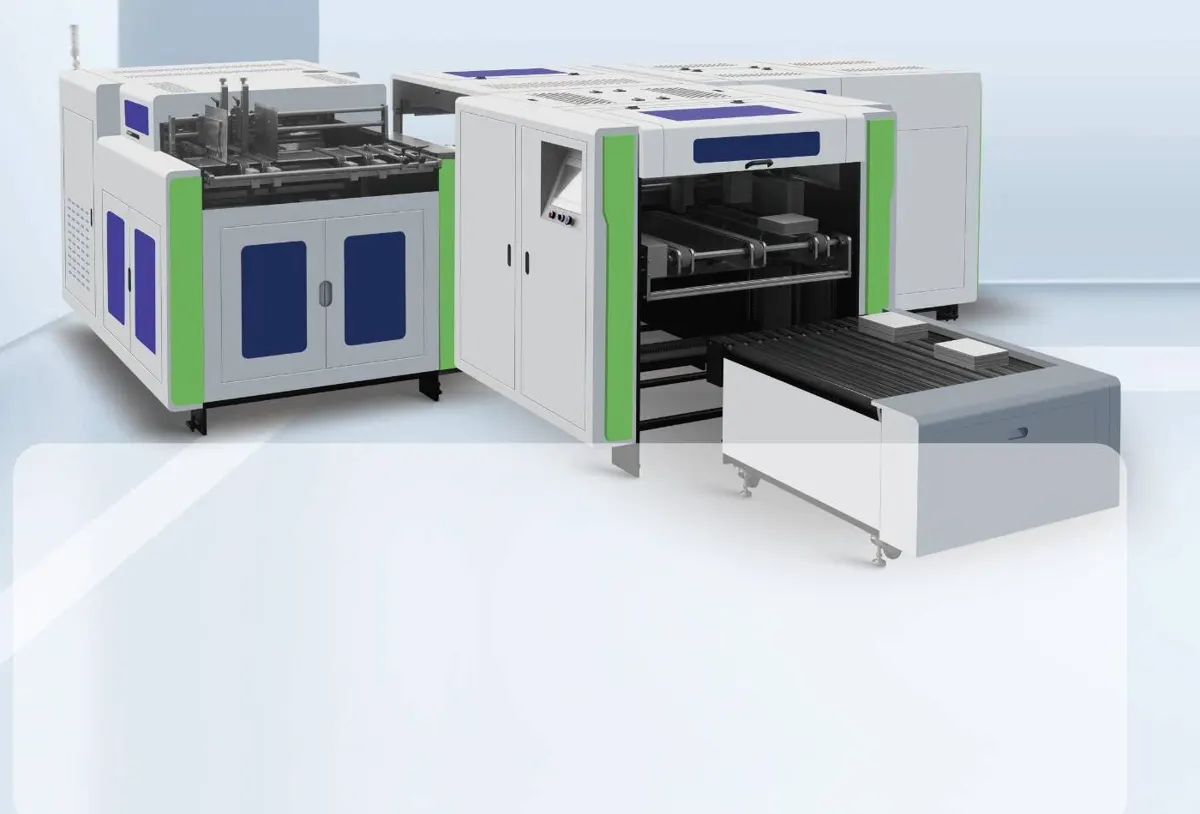

Well-Shaped Slotting Machine with Auto Stacking
Slots, flattens and stacks — no one stands at the outfeed.
The HR-900AFS adds an automatic flattening and stacking section to our well-shaped line. An intelligent sensor lifting system sets the collection height to the job, and entering the finished length × width on the panel moves the beating plates into position automatically. It also serves as a program-controlled receiving unit for HR-1000 and HR-700 cross-slotting machines.
- Max feed
- 650 × 900 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 11 kW
Highlights
- Intelligent sensor-driven height adjustment
- Auto-positioning beating plates from panel input
- Program-controlled fast format changeover
- Replaces manual stacking and its injury risk
Made for
- High-volume rigid box blank production
- Retrofit collection for HR-1000 / HR-700 lines
- Plants reducing manual stacking labour
Equipment data
| Minimum feeding size | 130 × 130 mm |
|---|---|
| Maximum feeding size | 650 × 900 mm |
| Grooving angle | 80°–140°, adjustable |
| Main machine correction length | 895 mm |
| Auxiliary assisted correction length | 1130 mm |
| Auxiliary correction length | 1000 mm |
| Maximum speed | 50–100 m/min · approx. 150 pcs/min (200×300 mm) |
| Normal speed | 50–80 m/min · approx. 110 pcs/min (200×300 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 11 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 1000 mm, 8 belts |
| Auxiliary machine drum | Φ600 × 800 mm, 6 belts |
| Four-corner waste cleaning | Conveyor belt, side discharge |
| Crossbeams | 2 main, 2 auxiliary |
| Cutter rows | 2 groups main, 2 groups auxiliary; 3 knives per row |
| Paper feeding | Belt friction, downward-drawing conveying |
Shipping
| Machine dimensions | Main 2500×1470×1450 mm · Aux 1900×1350×1450 mm |
|---|---|
| Receiving section | 2700×1750×1450 mm · table 1320×980×630 mm |
| Total machine weight | 4000 kg |
