Well-Shaped Slotting
HR-900P

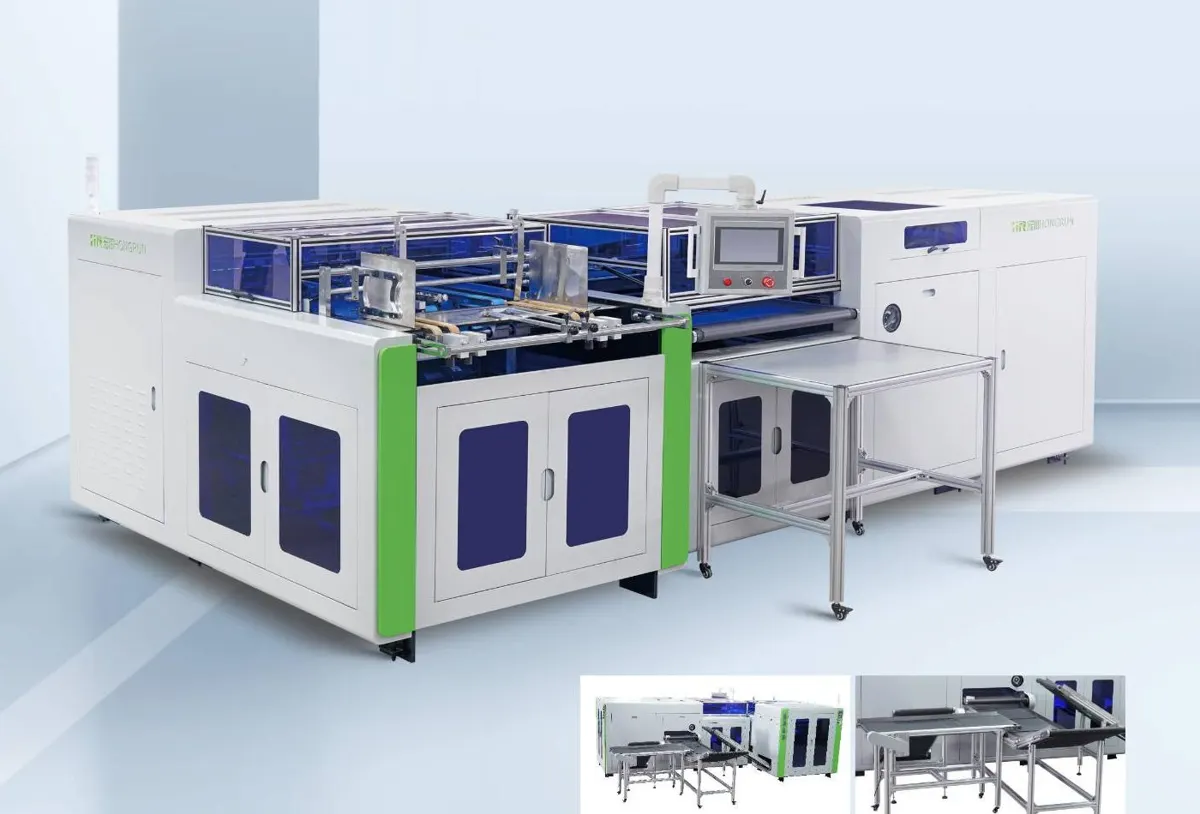

Well-Shaped Slotting Machine, Centralized Waste Removal
All offcuts leave from one point. Cleaner floor, faster shifts.
The HR-900P routes corner waste from both main and auxiliary machines to a single centralized removal point, so trim can be bagged or baled without chasing it around the line. Grooving performance matches the HR-1000 family on a 600 × 900 mm format.
- Max feed
- 600 × 900 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 8.0 kW
Highlights
- Centralized waste removal from both machines
- Original one-way deviation correction
- 0.10 mm maximum precision
- 8.0 kW total power
Made for
- Plants with centralized scrap handling
- V/U grooving on crust paperboard
- L-grooving of density board edges
Equipment data
| Minimum feeding size | 130 × 130 mm |
|---|---|
| Maximum feeding size | 600 × 900 mm |
| Grooving angle | 80°–140°, adjustable |
| Main machine correction length | 895 mm |
| Auxiliary assisted correction length | 1130 mm |
| Auxiliary correction length | 1000 mm |
| Maximum speed | 50–100 m/min · approx. 150 pcs/min (200×300 mm) |
| Normal speed | 50–80 m/min · approx. 110 pcs/min (200×300 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 8.0 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 1000 mm, 8 belts |
| Auxiliary machine drum | Φ600 × 800 mm, 6 belts |
| Crossbeams | 2 main, 2 auxiliary |
| Cutter rows | 2 groups main, 2 groups auxiliary; 3 knives per row |
| Paper feeding | Belt friction, downward-drawing conveying |
Shipping
| Machine dimensions | Main 2560×1570×1560 mm · Aux 2890×1450×1400 mm |
|---|---|
| Packed dimensions | Main 3640×1630×1660 mm · Aux 2980×1470×1670 mm |
| Net / packed weight | 3500 kg / 3670 kg |
Quotation
Price, lead time and freight for the HR-900P.
Include your largest blank size and board thickness — we’ll confirm the HR-900P fits, or point you to the machine that does.
