Well-Shaped Slotting
HR-760

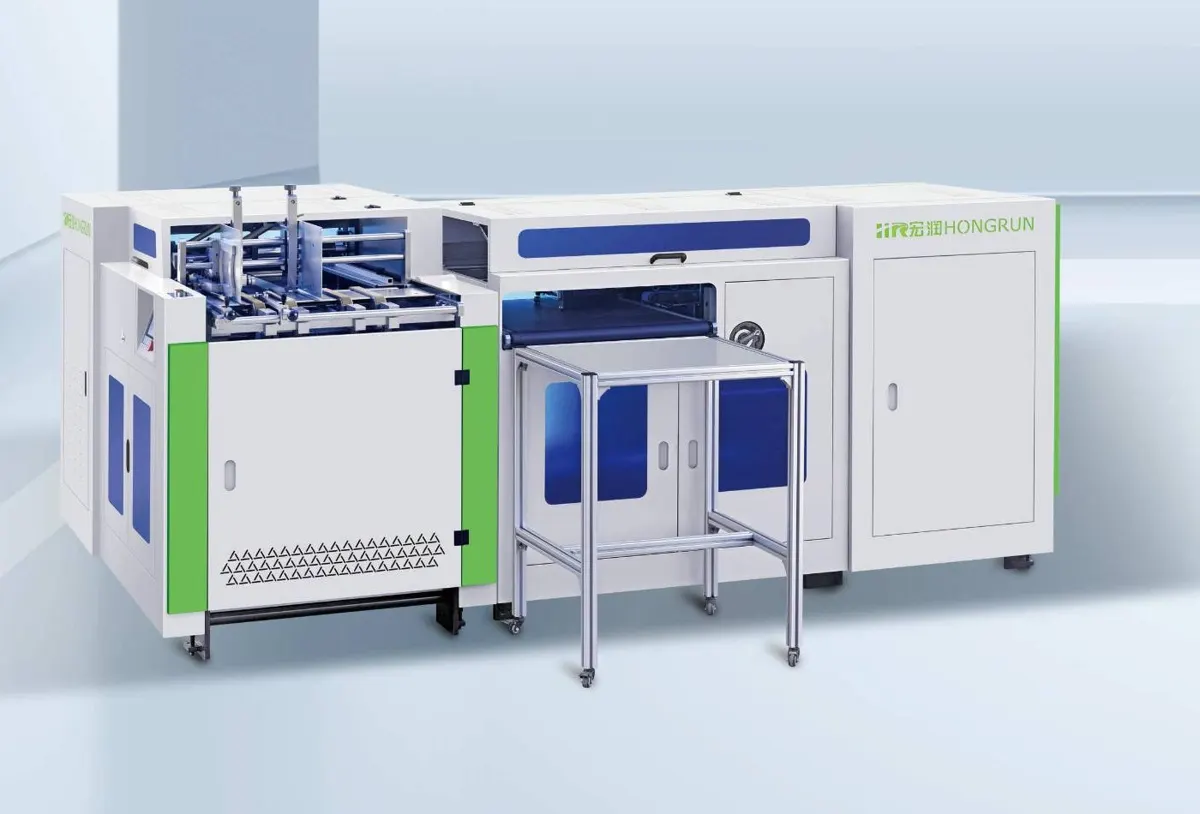

Well-Shaped Slotting Machine, Compact
The fastest small-format line we build: 180 pieces a minute.
The HR-760 is sized for small rigid boxes — jewellery, cosmetics, electronics accessories — where blanks rarely exceed 580 × 680 mm. A shorter drum and lighter frame bring throughput up to around 180 pieces per minute on 200 × 200 mm blanks at just 6 kW.
- Max feed
- 580 × 680 mm
- Speed
- 180 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 6.0 kW
Highlights
- Approx. 180 pcs/min on 200×200 mm
- Four-corner waste cleaning
- 2,700 kg — the lightest well-shaped line
- 6.0 kW total power
Made for
- Jewellery and cosmetics boxes
- Small electronics packaging
- Space-constrained workshops
Equipment data
| Minimum feeding size | 130 × 130 mm |
|---|---|
| Maximum feeding size | 580 × 680 mm |
| Grooving angle | 80°–140°, adjustable |
| Main machine correction length | 895 mm |
| Auxiliary correction length | 1310 mm |
| Maximum speed | 80–100 m/min · approx. 180 pcs/min (200×200 mm) |
| Normal speed | 50–80 m/min · approx. 150 pcs/min (200×200 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 6.0 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 800 mm, 7 belts |
| Auxiliary machine drum | Φ600 × 700 mm, 6 belts |
| Four-corner waste cleaning | Conveyor belt, side discharge |
| Crossbeams | 2 main, 2 auxiliary |
| Cutter rows | 2 groups main, 2 groups auxiliary; 2 knives per row |
| Paper feeding | Belt friction, downward-drawing conveying |
Shipping
| Machine dimensions | Main 2260×1160×1400 mm · Aux 2260×1480×1400 mm |
|---|---|
| Packed dimensions | Main 2450×1300×1550 mm · Aux 2430×1500×1600 mm |
| Net / packed weight | 2700 kg / 2850 kg |
Quotation
Price, lead time and freight for the HR-760.
Include your largest blank size and board thickness — we’ll confirm the HR-760 fits, or point you to the machine that does.
