Cardboard Slotting

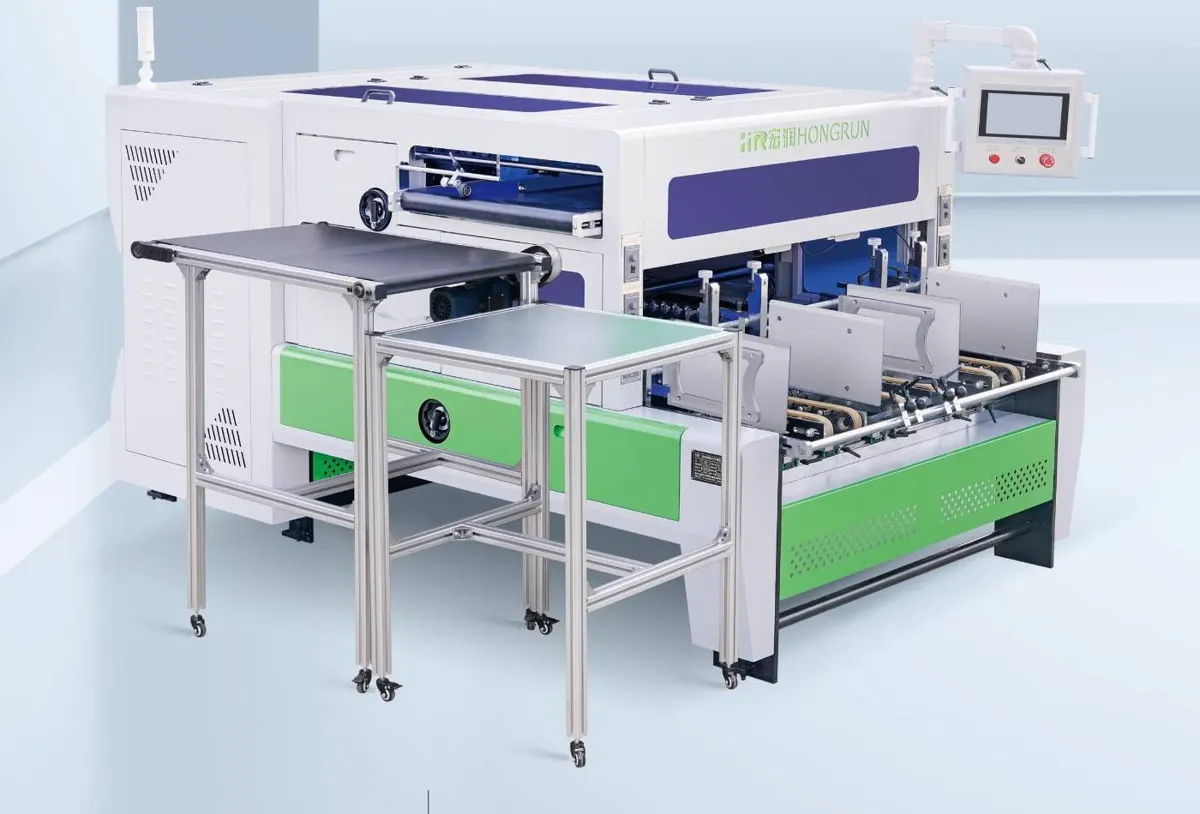

HR-1000C / 1300C
Slotting Machine, Single & Dual Station
Book cases, flip-tops and shoe boxes, two stations at a time.
The C series is built for the box styles that pay the bills: book cases, jewellery boxes, flip-top boxes and shoe boxes. The 1000C runs single-station correction; the 1300C runs dual-station correction and can slot two 400 × 700 mm blanks simultaneously. Both cut V, L and U slots and are run from a 10-inch HMI.
- Max feed
- 650 × 1230 mm
- Speed
- 80–100 m/min
- Board
- 0.6–4.0 mm
- Power
- 5.5 kW
Highlights
- Dual-station simultaneous slotting up to 400×700 mm (1300C)
- 10-inch HMI operation
- Built-in 4-corner waste removal
- Left and right collection conveyors
Made for
- Book-case and flip-top boxes
- Shoe boxes and jewellery boxes
- V-, L- and U-slot profiles
Equipment data
| Minimum feeding size | 1000C 100×130 mm · 1300C 100×130 mm |
|---|---|
| Maximum feeding size | 1000C 650×930 mm · 1300C 650×1230 mm |
| Grooving angle | 80°–140°, adjustable |
| Deviation correction length | 1465 mm |
| Maximum speed | 80–100 m/min |
| Normal speed | 60–80 m/min |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 5.5 kW |
Configuration
| Correction | 1000C single-station · 1300C dual-station |
|---|---|
| Drum | 1000C Φ600×1000 mm · 1300C Φ600×1300 mm |
| Grooving strips (1st / 2nd) | 1000C 4 / 4 · 1300C 5 / 5 |
| Cutter rows | 1000C 8 · 1300C 10; 2 groups, 4 knives per row |
| Waste removal | Built-in 4-corner, side-discharge conveyor |
| Slot types | V-slot, L-slot, U-slot |
| Operation | 10-inch HMI |
Shipping
| Machine dimensions | 2800×1650×1670 mm |
|---|---|
| Packed dimensions | 2950×1800×1820 mm |
| Net / packed weight | 1500 kg / 1830 kg |
Quotation
Price, lead time and freight for the HR-1000C / 1300C.
Include your largest blank size and board thickness — we’ll confirm the HR-1000C / 1300C fits, or point you to the machine that does.
