HR-860FD

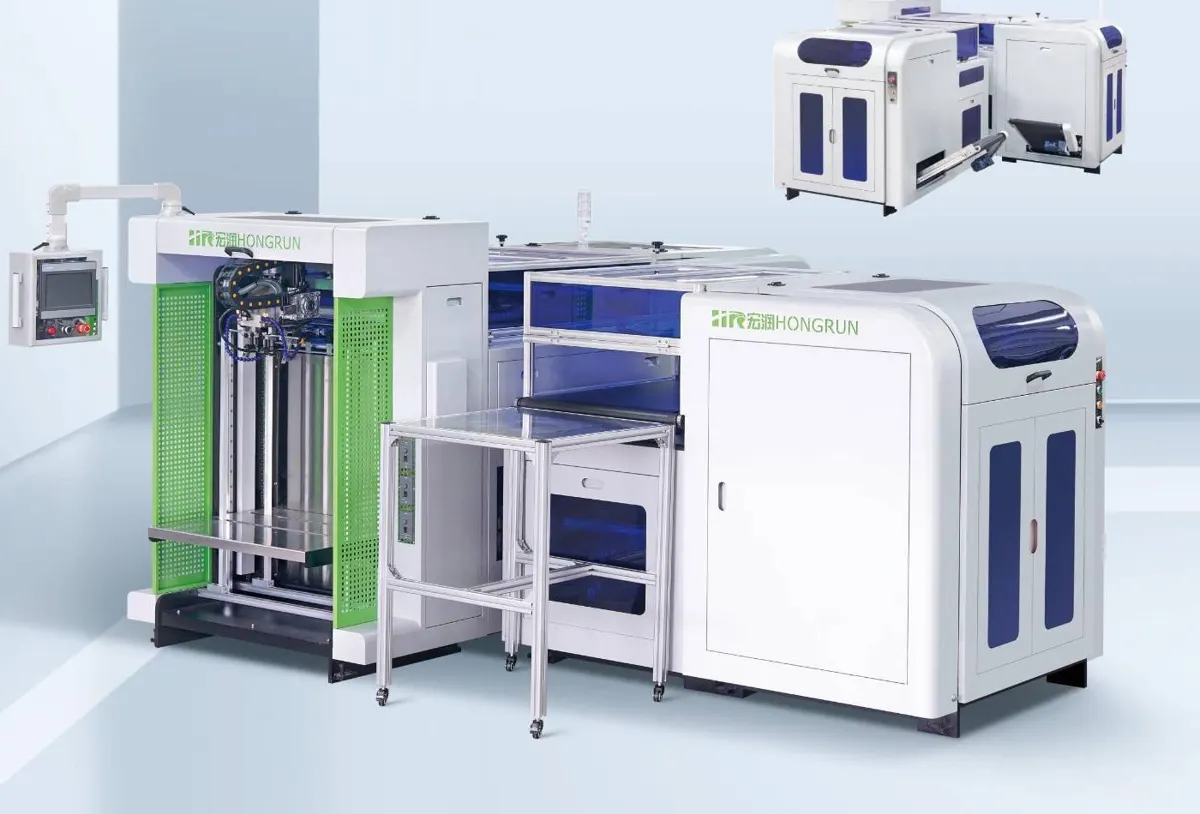

Feeder Well-Shaped Cardboard Slotting Machine
Automatic feeder for thin card stock from 200 to 600 gsm.
The HR-860FD adds an automatic feeder to our well-shaped design so thin, flexible card stock is pulled in one sheet at a time. Eight auxiliary air-blowing pipes clear chips out of the groove, and the time-delay stop keeps the last sheet from jamming. It performs double-way V-grooving on cardboard and card boxes.
- Max feed
- 600 × 680 mm
- Speed
- 40–60 m/min
- Board
- 200–600 g
- Power
- 9.0 kW
Highlights
- Automatic feeder paper feeding
- 8 auxiliary air-blowing pipes
- Adjustable time-delay stop
- Belt speeds adjustable separately
Made for
- Folding card boxes
- 200–600 gsm card stock
- Double-way V-grooving
Equipment data
| Minimum feeding size | 150 × 150 mm |
|---|---|
| Maximum feeding size | 600 × 680 mm |
| Grooving angle | 80°–140°, adjustable |
| Main / auxiliary correction length | 1000 mm / 1000 mm |
| Maximum speed | 40–60 m/min |
| Normal speed | 20–40 m/min |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board weight | 200–600 g |
| Total machine power | 9.0 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 800 mm, 8 belts |
| Auxiliary machine drum | Φ600 × 800 mm, 8 belts |
| Air-blowing system | Adjustable time-delay stop |
| Crossbeams | 3 main, 3 auxiliary |
| Cutter rows | 3 groups main, 3 groups auxiliary; 3 knives per row |
| Paper feeding | Feeder |
Shipping
| Machine dimensions | Main 3000×1480×1810 mm · Aux 1910×1480×1500 mm |
|---|---|
| Packed dimensions | Main 3150×1630×1960 mm · Aux 2060×1630×1650 mm |
| Net / packed weight | 3700 kg / 3900 kg |
Quotation
Price, lead time and freight for the HR-860FD.
Include your largest blank size and board thickness — we’ll confirm the HR-860FD fits, or point you to the machine that does.
