Cardboard Slotting
HR-800K

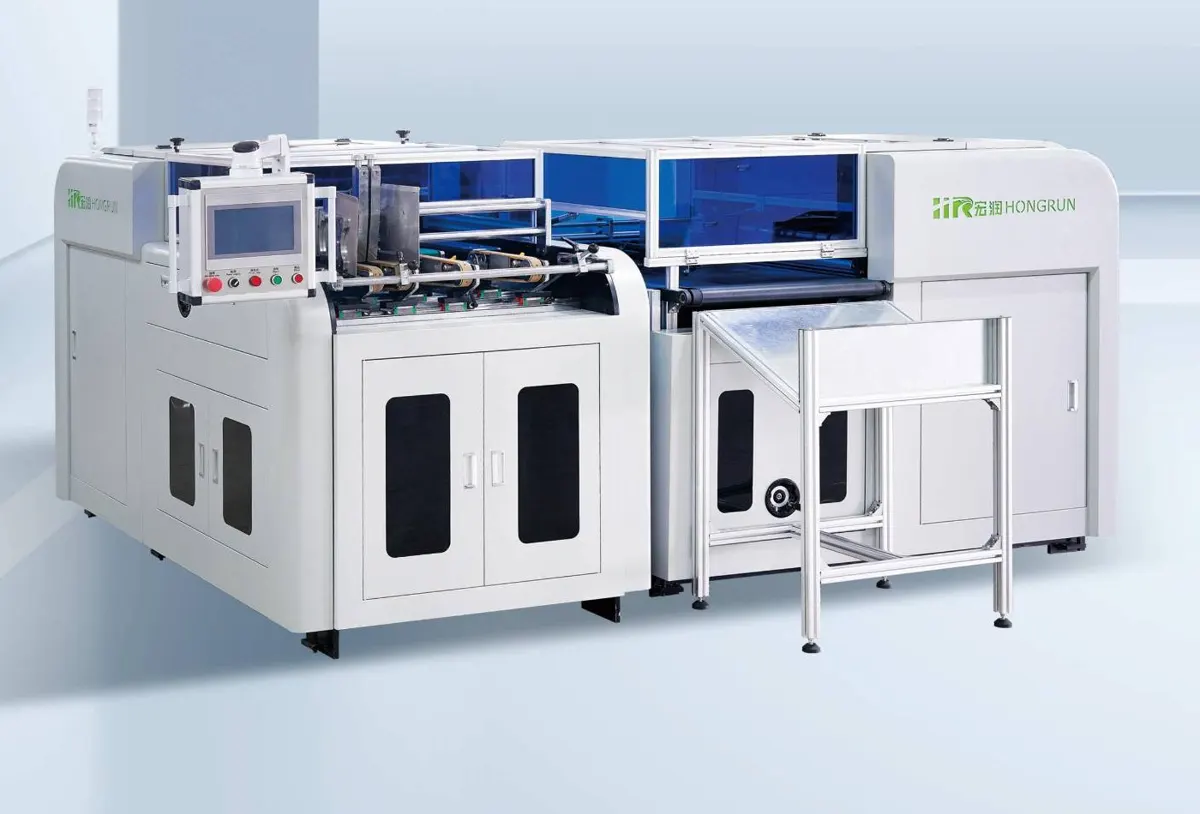

Well-Shaped Cardboard Slotting Machine
Down-suction conveying for fast, small card blanks.
The HR-800K is our quickest card machine: around 200 pieces per minute on 150 × 200 mm blanks. Down-suction conveying holds light stock flat, and three independently switchable groups of air-blowing pipes keep every groove clean.
- Max feed
- 470 × 620 mm
- Speed
- 200 pcs/min
- Board
- 220–600 g
- Power
- 6.0 kW
Highlights
- Approx. 200 pcs/min on 150×200 mm
- Down-suction paper conveying
- 3 independent air-blowing groups
- 6.0 kW total power
Made for
- Small card boxes and sleeves
- 220–600 gsm card stock
- High-count short-format runs
Equipment data
| Minimum feeding size | 80 × 120 mm |
|---|---|
| Maximum feeding size | 470 × 620 mm |
| Grooving angle | 80°–140°, adjustable |
| Main / auxiliary correction length | 895 mm / 1010 mm |
| Maximum speed | 50–100 m/min · approx. 200 pcs/min (150×200 mm) |
| Normal speed | 20–60 m/min · approx. 160 pcs/min (150×200 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board weight | 220–600 g |
| Total machine power | 6.0 kW |
Configuration
| Deviation correction (1st / 2nd) | Single-side wheel / single-side wheel |
|---|---|
| Main machine drum | Φ600 × 800 mm, 7 belts |
| Auxiliary machine drum | Φ600 × 800 mm, 6 belts |
| Air-blowing system | Time-delay stop, 3 independent groups |
| Paper feeding | Down-suction conveying |
| Cutter rows | 3 groups main, 3 groups auxiliary; 3 knives per row |
Shipping
| Machine dimensions | Main 2390×1430×1680 mm · Aux 1910×1290×1470 mm |
|---|---|
| Packed dimensions | Main 2500×1530×1780 mm · Aux 2050×1400×1570 mm |
Quotation
Price, lead time and freight for the HR-800K.
Include your largest blank size and board thickness — we’ll confirm the HR-800K fits, or point you to the machine that does.
