Cardboard Slotting
HR-930KZ

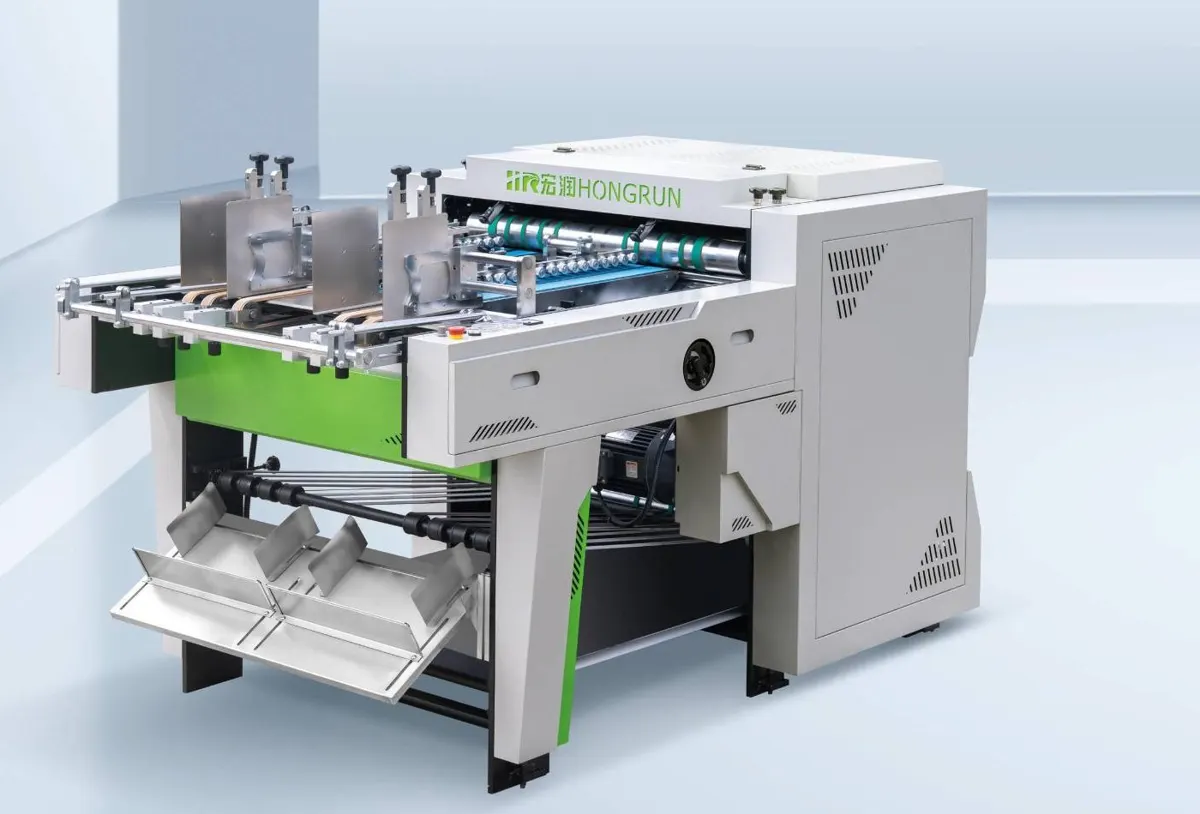

Cardboard Slotting Machine, Dual Station
Two stations, 2.2 kW. The most efficient machine in the range.
The HR-930KZ performs dual-station bidirectional V-grooving on cardboard and greyboard from 250 g up to 2 mm. Three sets of grooving strips and four knives per group handle complex layouts while drawing only 2.2 kW.
- Max feed
- 550 × 930 mm
- Speed
- 150 pcs/min
- Board
- 250 g–2 mm
- Power
- 2.2 kW
Highlights
- Dual-station grooving
- Three sets of grooving strips
- 2.2 kW total power
- 1,500 kg net weight
Made for
- Greyboard and cardboard boxes
- 250 g to 2 mm board
- Bidirectional V-grooving
Equipment data
| Minimum feeding size | 100 × 100 mm |
|---|---|
| Maximum feeding size | 550 × 930 mm |
| Grooving angle | 80°–140°, adjustable |
| Deviation correction length | 820 mm |
| Maximum speed | 30–32 m/min · approx. 150 pcs/min (300×300 mm) |
| Normal speed | 20–25 m/min · approx. 130 pcs/min (300×300 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 250 g–2 mm |
| Total machine power | 2.2 kW |
Configuration
| Drum | Φ600 × 1000 mm |
|---|---|
| Grooving strips (1st / 2nd / 3rd) | 4 / 4 / 3 |
| Cutter rows | 10; 3 groups, 4 knives per group |
Shipping
| Machine dimensions | 2600×1600×1500 mm |
|---|---|
| Packed dimensions | 2750×1750×1650 mm |
| Net / packed weight | 1500 kg / 1850 kg |
Quotation
Price, lead time and freight for the HR-930KZ.
Include your largest blank size and board thickness — we’ll confirm the HR-930KZ fits, or point you to the machine that does.
