Drum-Type Slotting
HR-1000 / 1200 / 1300

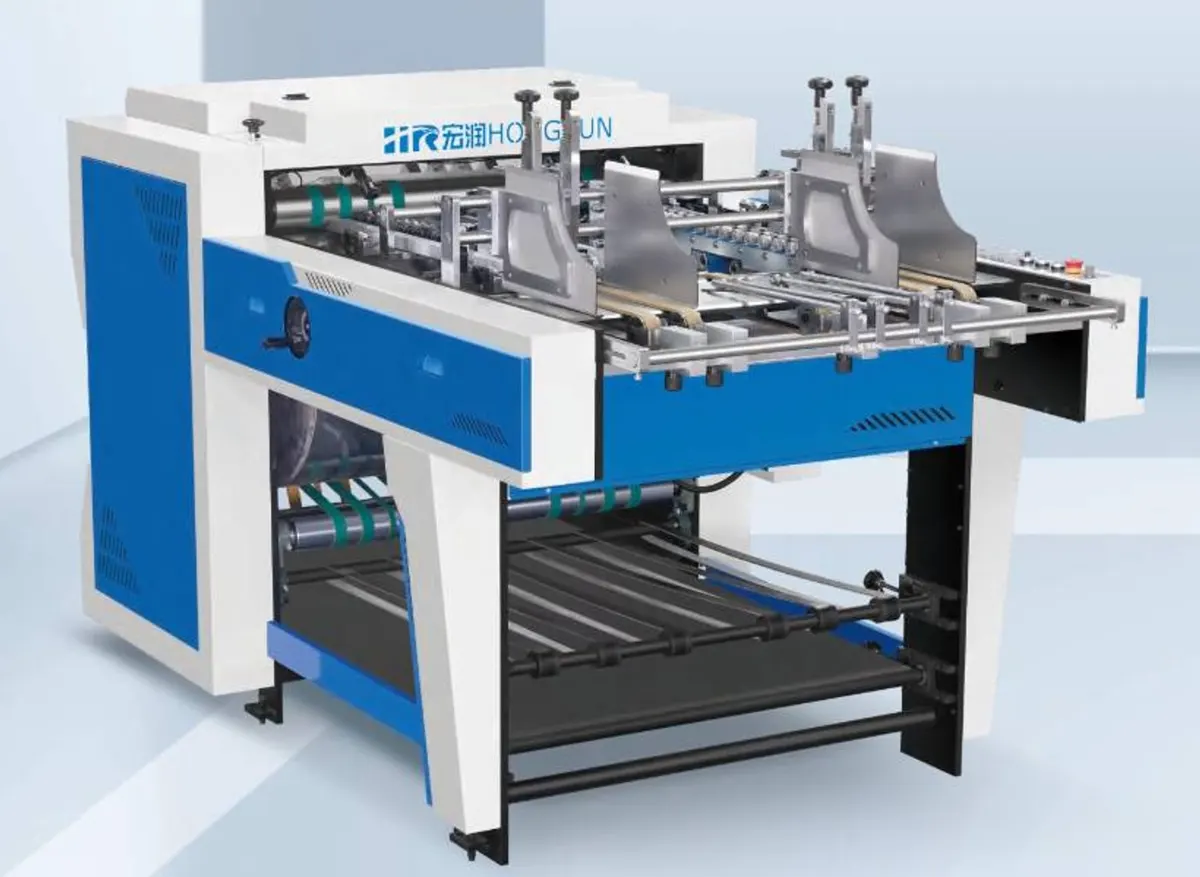

Drum-Type Slotting Machine
Three widths, one proven drum. Industrial board up to 4 mm.
Our drum-type machines make bidirectional V-grooves on industrial cardboard, grey cardboard and density board, with an optional L-type configuration. Choose the width that matches your largest blank: 930, 1130 or 1230 mm.
- Max feed
- up to 550 × 1230 mm
- Speed
- 150 pcs/min
- Board
- 0.6–4.0 mm
- Power
- 3.0 kW
Highlights
- Three working widths
- 0.6–4.0 mm board thickness
- 3.0 kW on every model
- Optional L-type grooving
Made for
- Industrial cardboard and greyboard
- Density board with L-type option
- Wide-format rigid packaging
Equipment data
| Minimum feeding size | 120 × 120 mm |
|---|---|
| Maximum feeding size | HR-1000 550×930 · HR-1200 550×1130 · HR-1300 550×1230 mm |
| Deviation correction length | HR-1000/1200 920 mm · HR-1300 1220 mm |
| Grooving angle | 80°–140°, adjustable |
| Maximum speed | 30–32 m/min · approx. 150 pcs/min (300×300 mm) |
| Normal speed | 20–25 m/min · approx. 130 pcs/min (300×300 mm) |
| Normal / maximum precision | 0.20 mm / 0.10 mm |
| Board thickness | 0.6–4.0 mm |
| Total machine power | 3.0 kW |
Configuration
| Drum | Φ600 × 1000 mm |
|---|---|
| Grooving strips (1st / 2nd) | HR-1000/1200 4 / 4 · HR-1300 5 / 5 |
| Cutter rows | HR-1000/1200 8 · HR-1300 10 |
| Knives | HR-1000/1200 2 groups × 4 · HR-1300 2 groups × 5 |
Shipping
| HR-1000 | 2400×1450×1400 mm · 1500 kg (packed 1850 kg) |
|---|---|
| HR-1200 | 2400×1650×1400 mm · 1600 kg (packed 1950 kg) |
| HR-1300 | 2700×1750×1400 mm · 1700 kg (packed 2050 kg) |
Quotation
Price, lead time and freight for the HR-1000 / 1200 / 1300.
Include your largest blank size and board thickness — we’ll confirm the HR-1000 / 1200 / 1300 fits, or point you to the machine that does.
