Manual Slotting
HR-1000 Manual

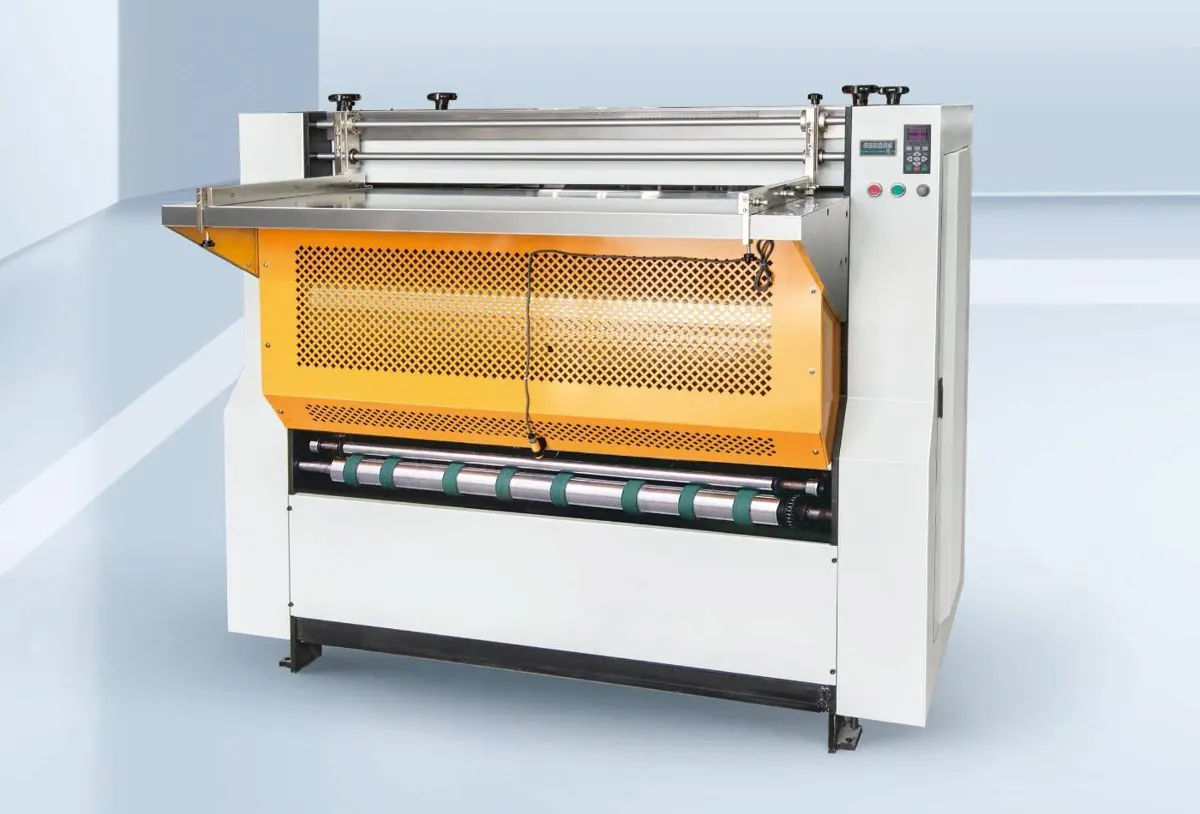

Manual Slotting Machine
For sample rooms, short runs and the widest blanks we take.
The manual slotting machine accepts blanks up to 900 × 930 mm and grooves them with 0.15 mm normal precision on just 1.5 kW. It is the machine customers put in the sampling room next to a production line — and the one many start with.
- Max feed
- 900 × 930 mm
- Speed
- 130 pcs/min
- Board
- 1.0–4.0 mm
- Power
- 1.5 kW
Highlights
- 0.15 mm normal precision
- Up to 900 × 930 mm blanks
- 9 slotting knives in 2 sets
- 1.5 kW total power
Made for
- Sampling and prototyping
- Short runs of oversize blanks
- Industrial board with L-type option
Equipment data
| Minimum feeding size | 130 × 130 mm |
|---|---|
| Maximum feeding size | 900 × 930 mm |
| Grooving angle | 80°–140°, adjustable |
| Maximum speed | 10–30 m/min · approx. 130 pcs/min (300×300 mm) |
| Normal speed | 10–20 m/min |
| Normal / maximum precision | 0.15 mm / 0.10 mm |
| Board thickness | 1.0–4.0 mm |
| Total machine power | 1.5 kW |
Configuration
| Drum | Φ600 × 1000 mm |
|---|---|
| Grooving strips (1st / 2nd) | 4 / 8 |
| Cutter rows | 5; 2 sets, 9 slotting knives |
Shipping
| Machine dimensions | 1250×1550×1460 mm |
|---|---|
| Packed dimensions | 1400×1700×1690 mm |
| Net / packed weight | 1100 kg / 1400 kg |
Quotation
Price, lead time and freight for the HR-1000 Manual.
Include your largest blank size and board thickness — we’ll confirm the HR-1000 Manual fits, or point you to the machine that does.
